24 inch 24inch brushed electric wheelchair hub motor with Electromagnetic brake
for medical wheelchair/medical bed/electric forklift/any other innovative electric products
Model:phub-24
power Rate:180w*2
Voltage:DC 24V
Speed:6km/h
Torque:26N.m.
RPM at the continues voltage and torque:153r/min
RPM without loading at continues voltage:183r/min
current at the continues voltage and torque:12ah
service life time of the unit (km or working hours):10000km
service life time of the tyre (km or working hours):5000km
Rated Efficiency: ≥ 80%
Fitted size:24'/26' tyre

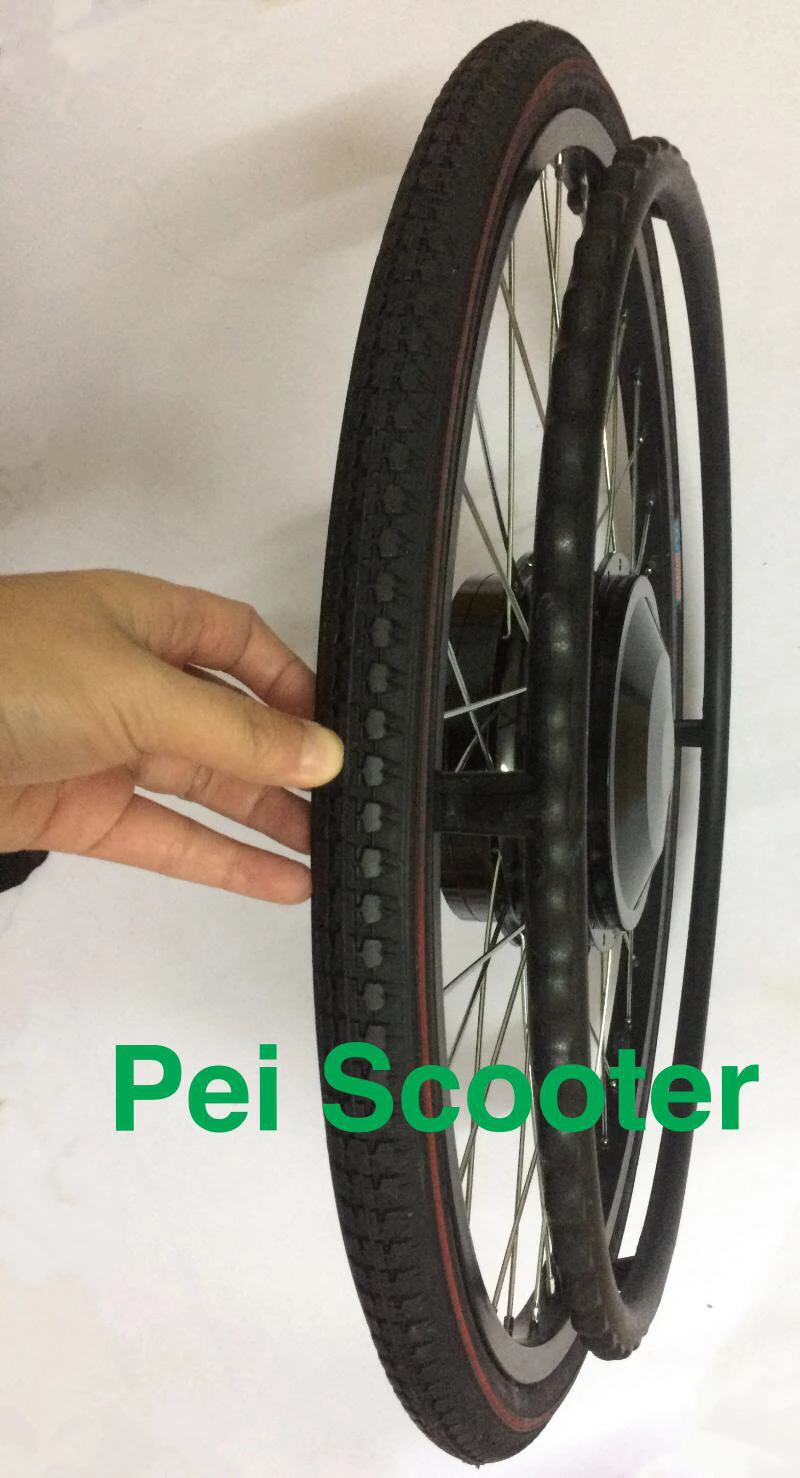

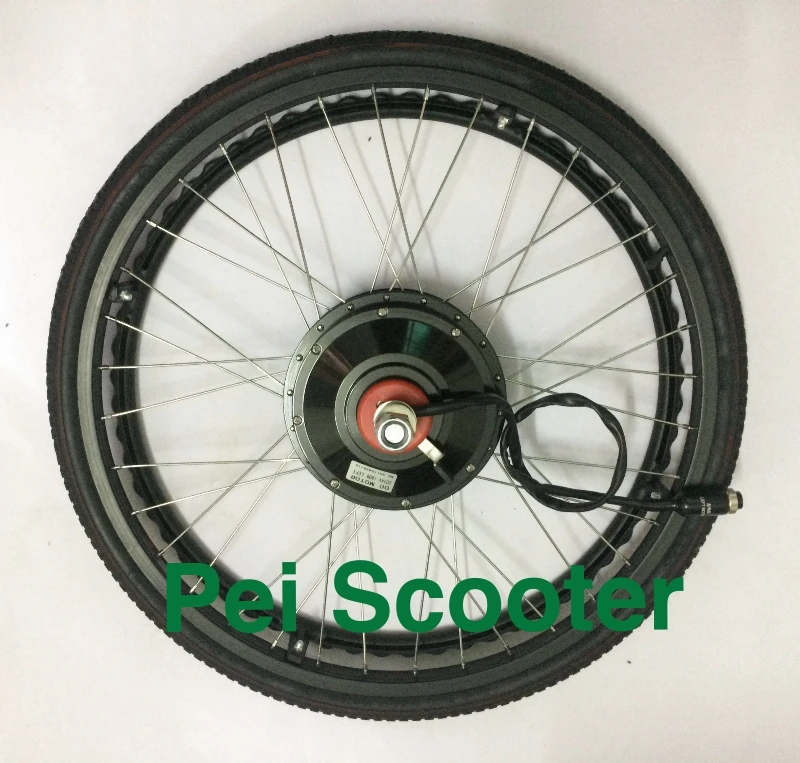

This is 24 inch brushed hub motor with electromagentic brake can be used for electric wheelchair.
The motor include left and right side.
Adtange:
Using thin plate type printing armature winding.
High strength and high wear resistant gear system.
The built-in electromagnetic clutch brake,support manual clutch.
Starting torque,wide speed range.
Running at low speed and directional control performance is good.
Small volume,high efficiency.
