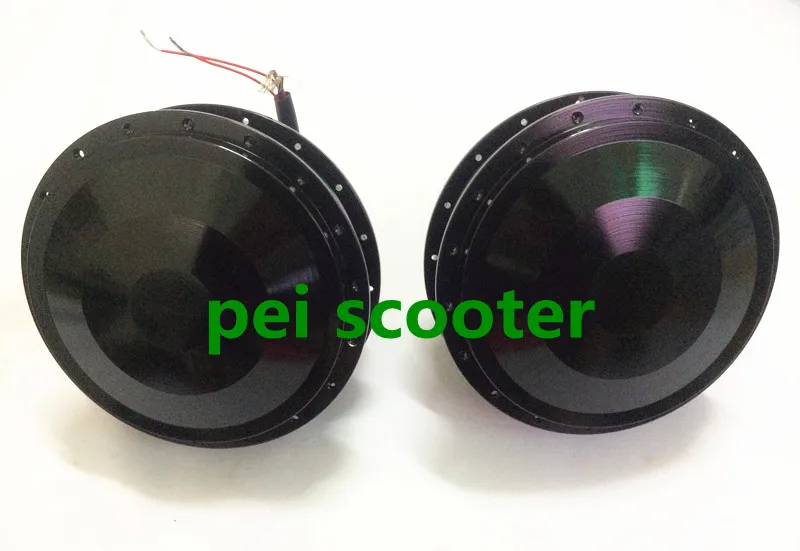

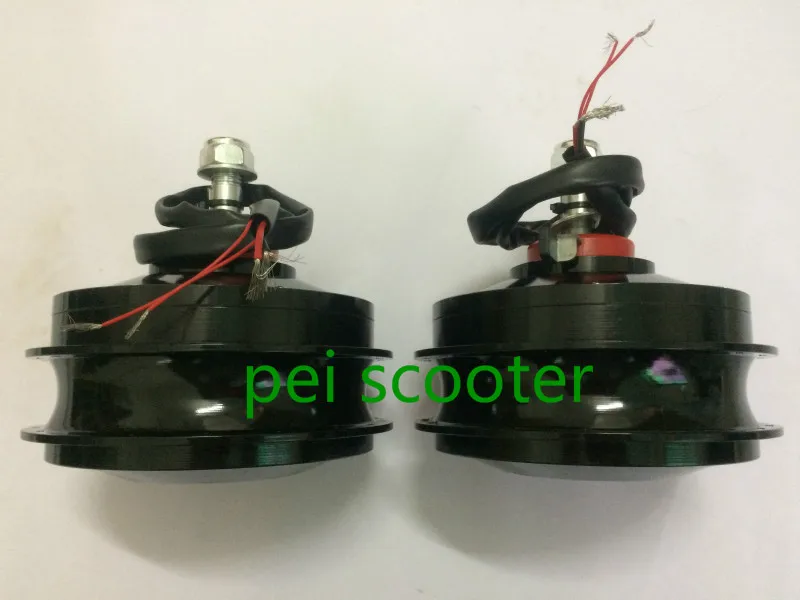

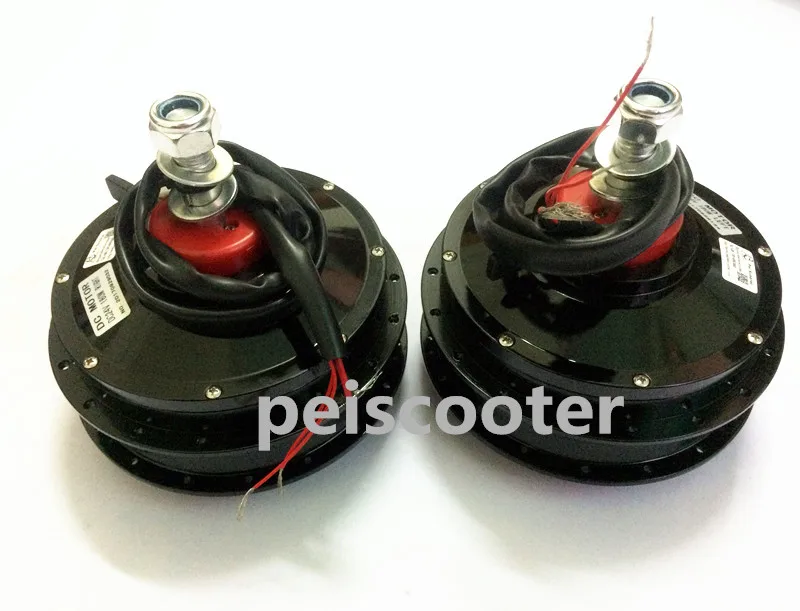

180w*2 brushed geared electric wheelchair robot spoke dc hub wheel motor
with electromagnetic brake
For medical wheelchair/medical bed/electric forklift/any other innovative electric products
Model: pewm-05
Price for pair
Power Rate:180W*2
Voltage:DC 24V
Speed:6 km/h
Torque:26N.m.
RPM at the continues voltage and torque:153r/min
RPM without loading at continues voltage:183r/min
current at the continues voltage and torque:12ah
service life time of the unit (km or working hours):10000km
service life time of the tyre (km or working hours):5000km
Rated Efficiency: ≥ 80%
can Fitted size:24'/26' tyre
The motor include left and right side.
Adtange:
Using thin plate type printing armature winding. High strength and high wear resistant gear system. The built-in electromagnetic clutch brake,support manual clutch. Starting torque,wide speed range. Running at low speed and directional control performance is good. Small volume,high efficiency.
