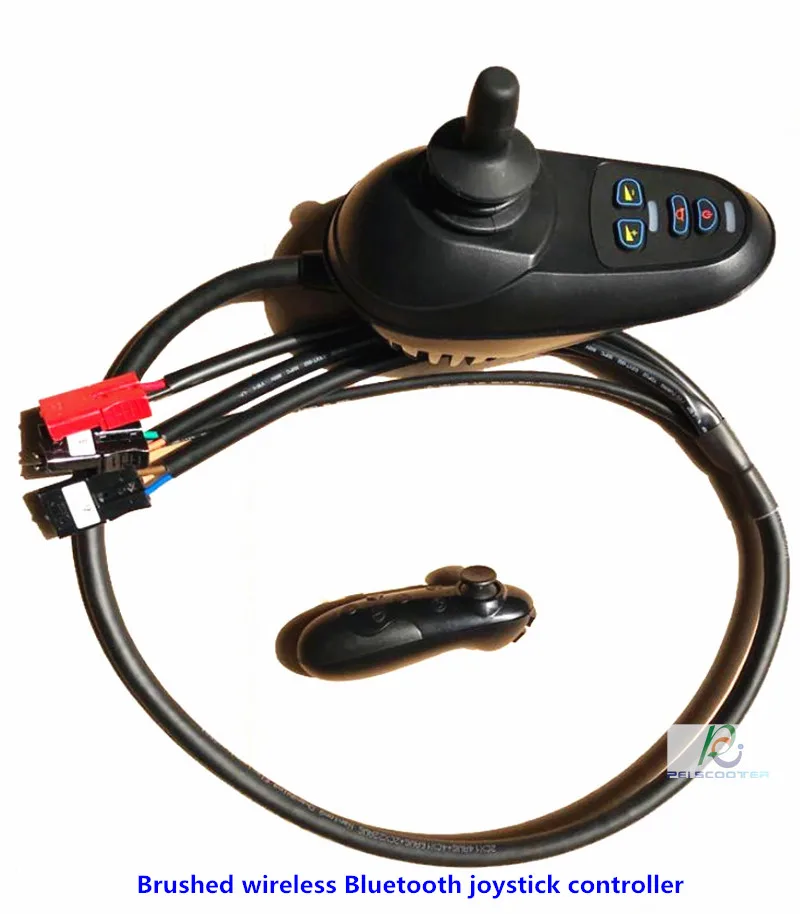

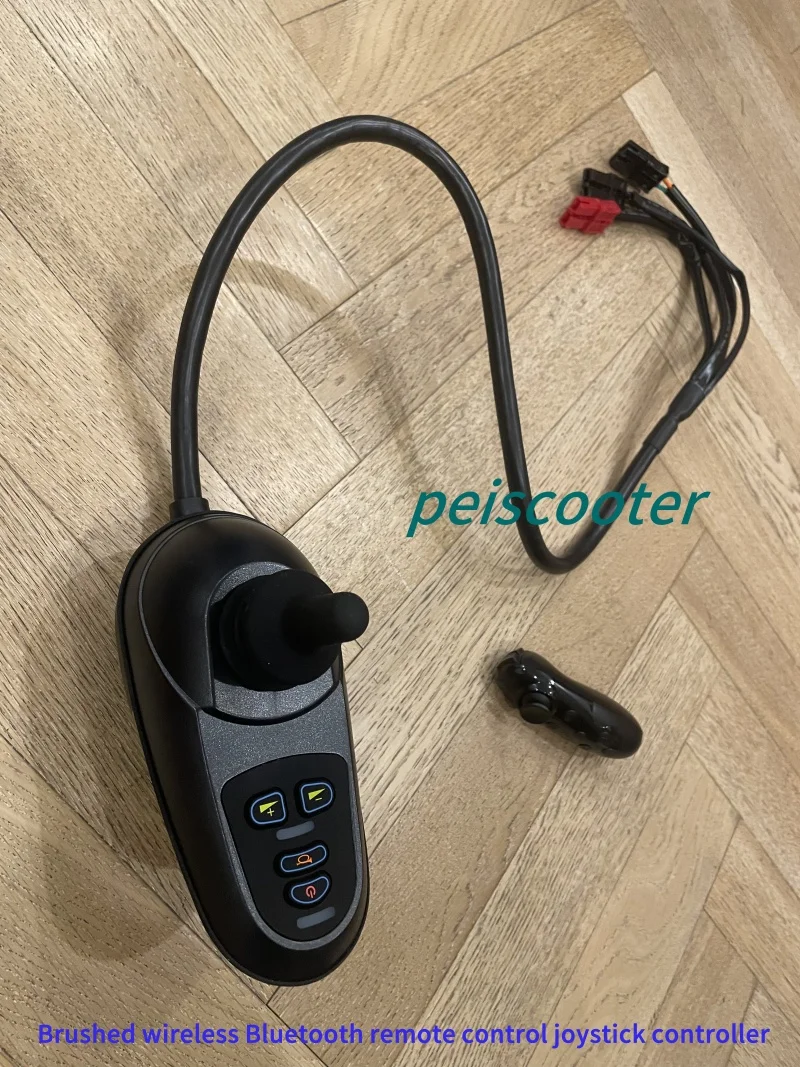

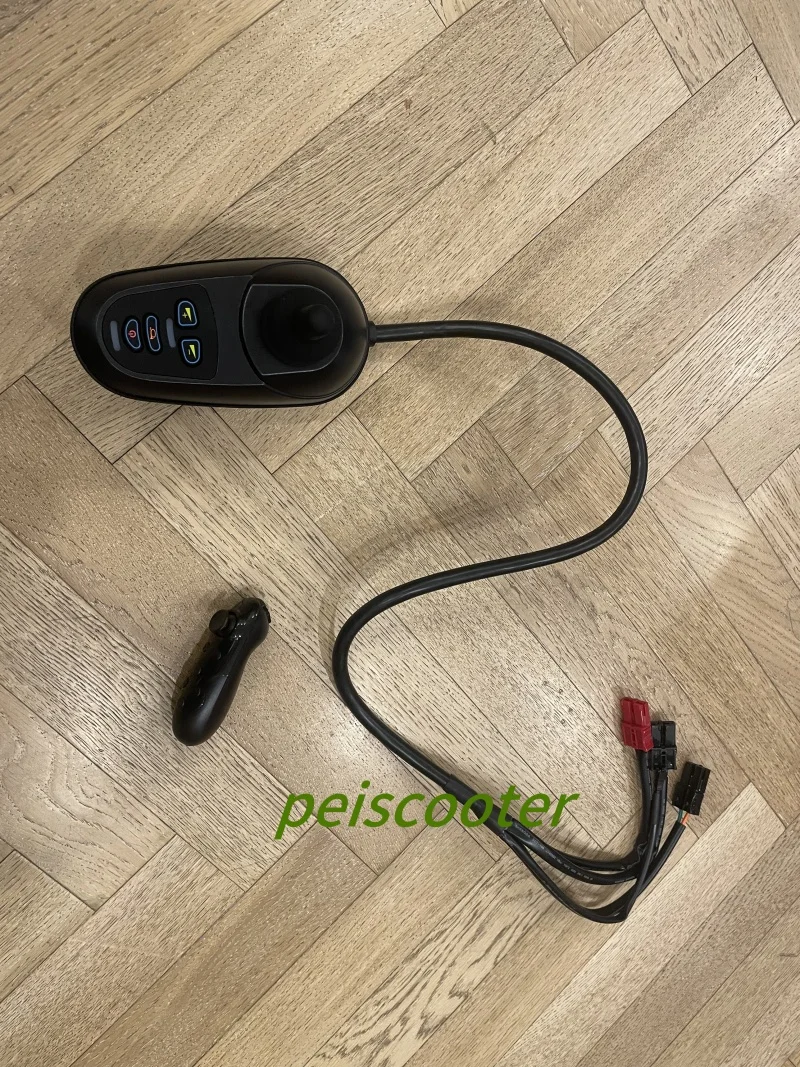

Brushed wireless Bluetooth remote control joystick controller for electric wheelchair scooter motor pps-33

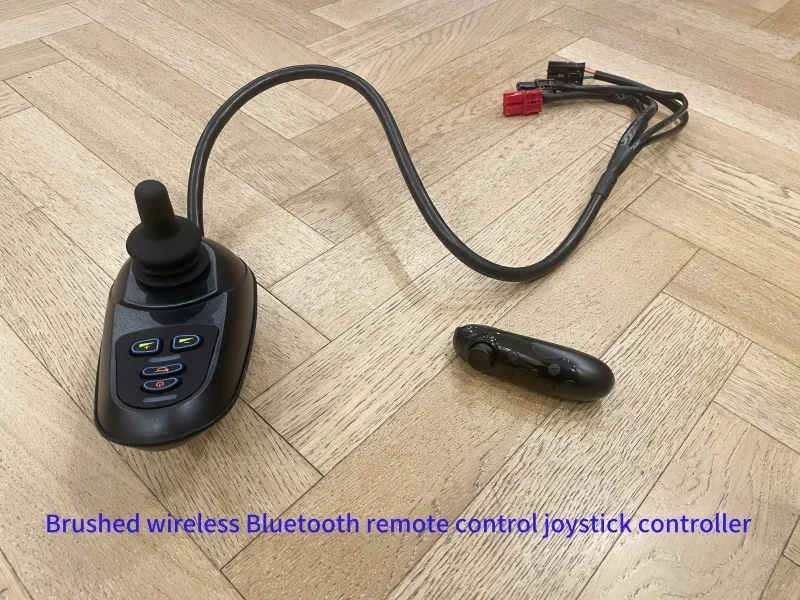

Brushed wireless Bluetooth remote control joystick controller

for electric wheelchair scooter motor

Model:pps-33

Controller electrical specifications

Power supply voltage: DC 24V

Working voltage: DC 19V to DC 32V

Peak voltage: DC 35V

Output current: 50A

Brake voltage: DC 24V

Braking current: single circuit maximum 3A

Battery charging current: maximum 6A, charged through the controller

Current required for standby: (stationary): ≤ 50 mAmps

Current required for standby (power off): 0.1 ± 0.05 mAmps

Working temperature: -25 ℃ to+60 ℃

Storage temperature: -45 ℃ to+80 ℃

Applicable driving motor form: 24V DC brush motor

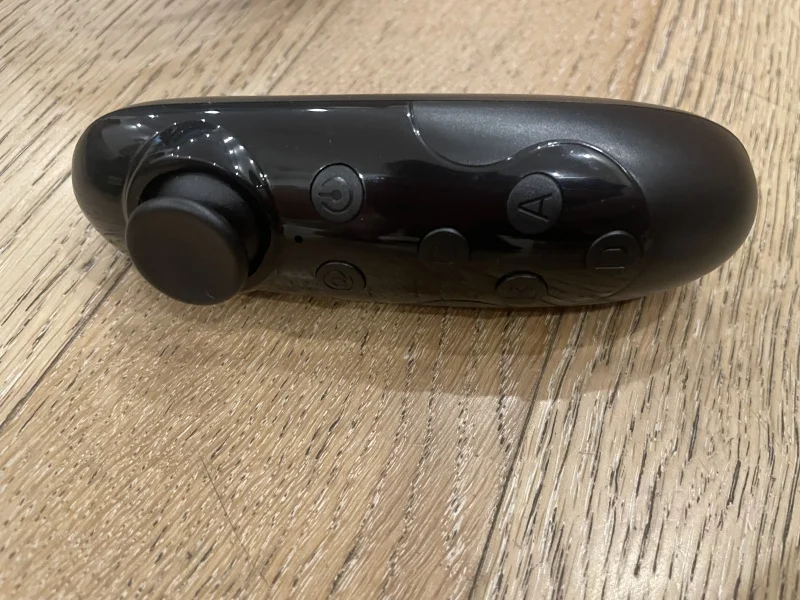

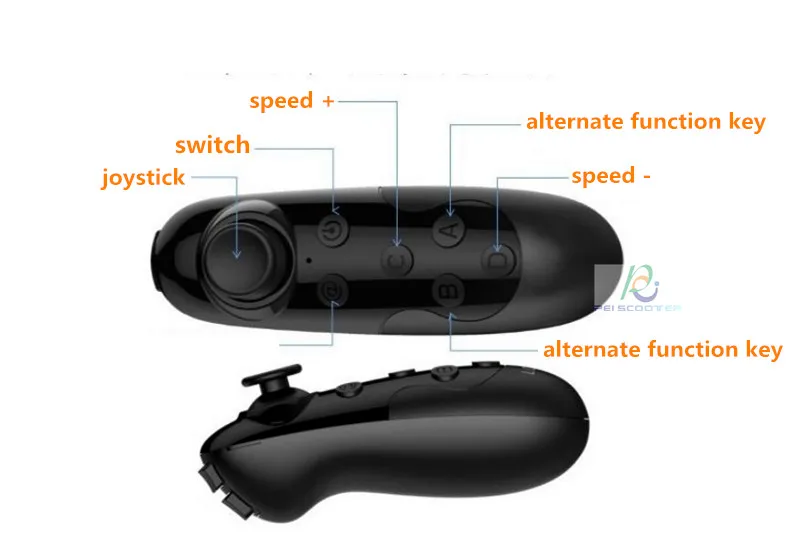

Handle electrical specifications

Working voltage: 2.8V~3.6V (powered by two No. 7 batteries)

Working current:<50Amps
