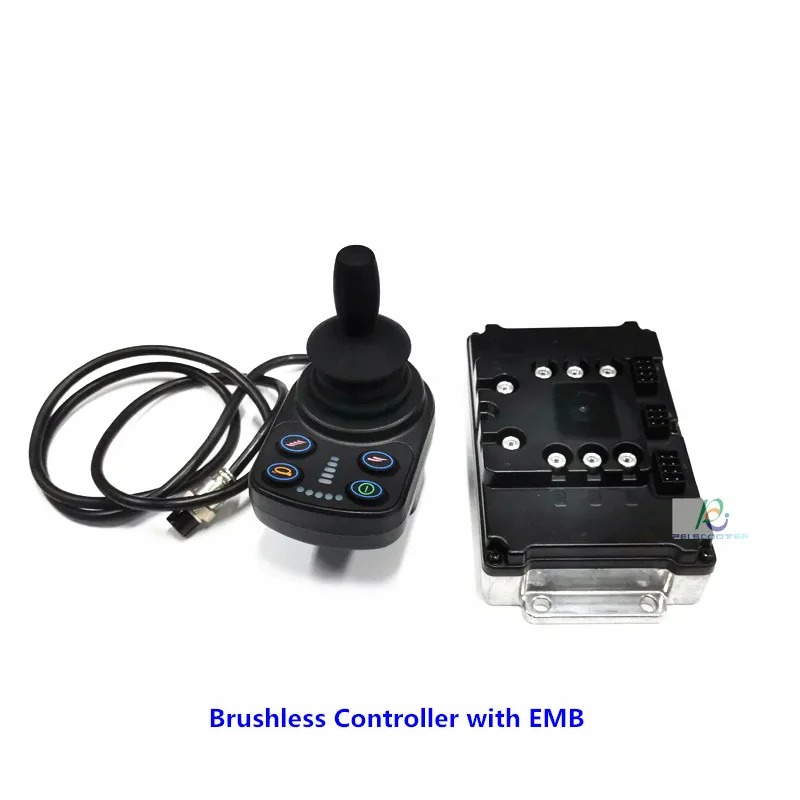

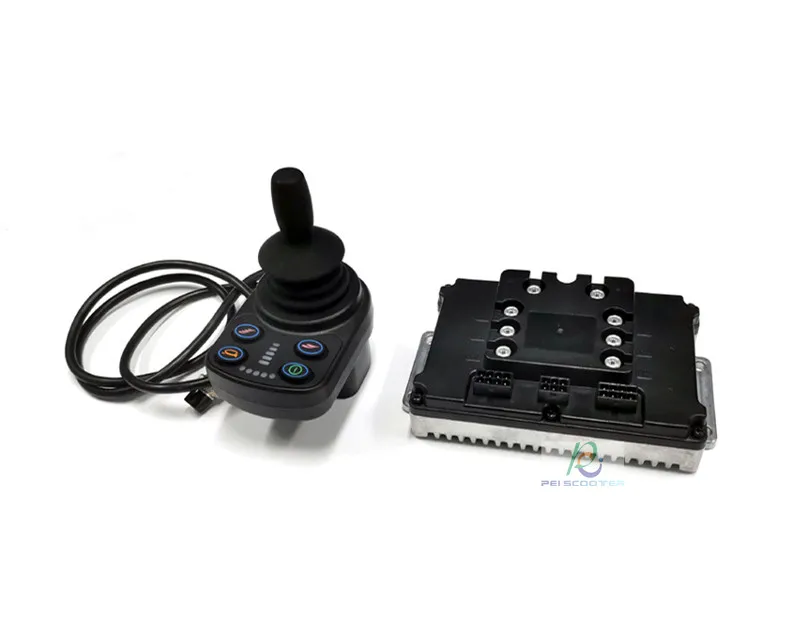

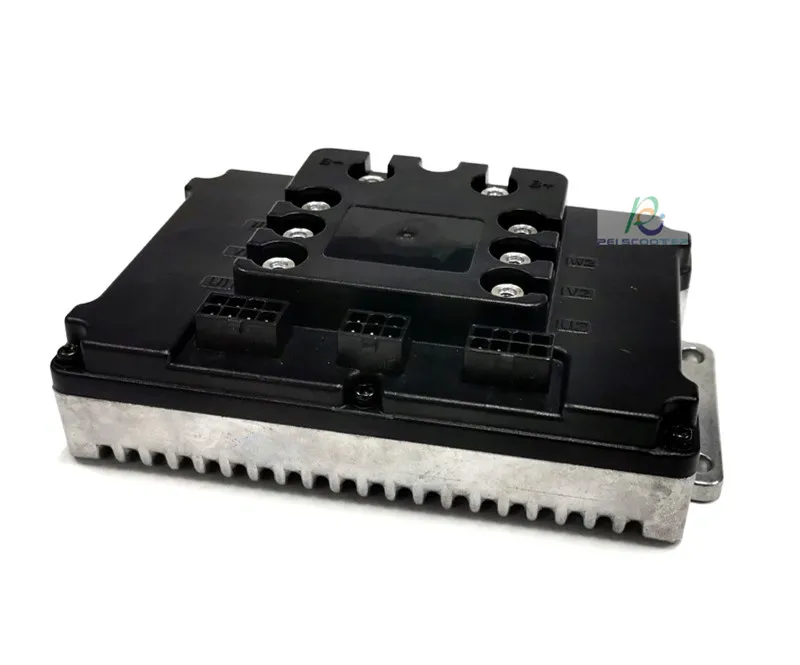

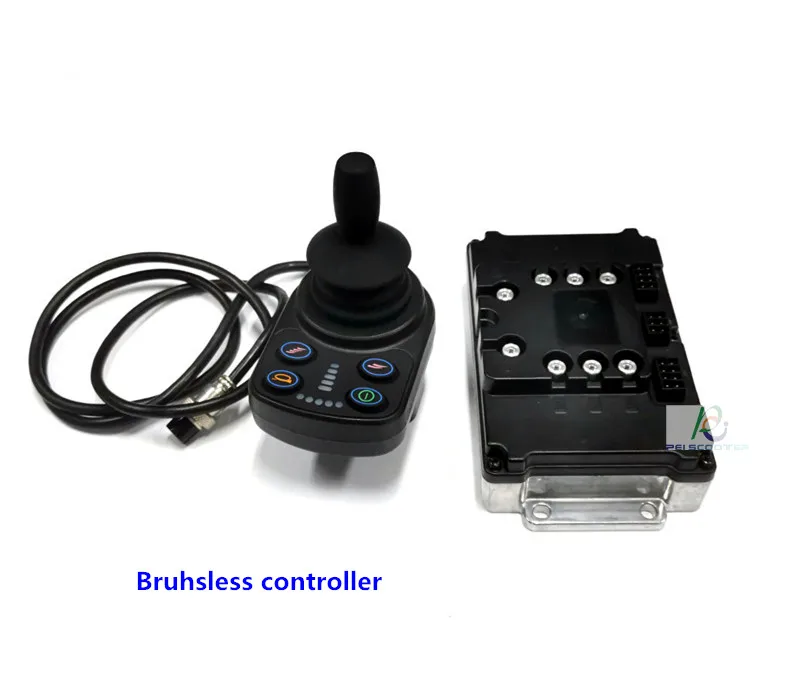

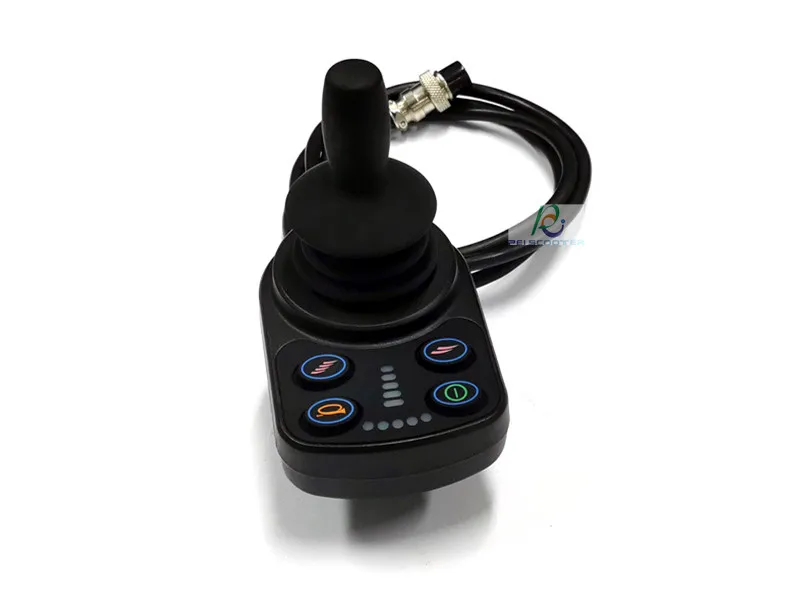

Brushless Wheelchair Robot Agricultural vehicle Scooter Motor Joystick Controller With Electromagentic Brake pps-66

Brushless Scooter Wheelchair Agricultural vehicle motor Joystick Controller With Electromagentic Brake

Model:pps-66

It can control two motors at the same time!

Power voltage:DC24V

Working voltage:DC18V-28V

Max voltage:DC38V

PWM frequency:19.5KHZ

Brake voltage:DC6V-24V

Brake current:max: 1A  minimun:0.1A (single)

Max charging current:12A

Max working current:50A

Use environment temperature:-25------ +50

Storage temperature:-40------ +65

Humidity level:IPX4
