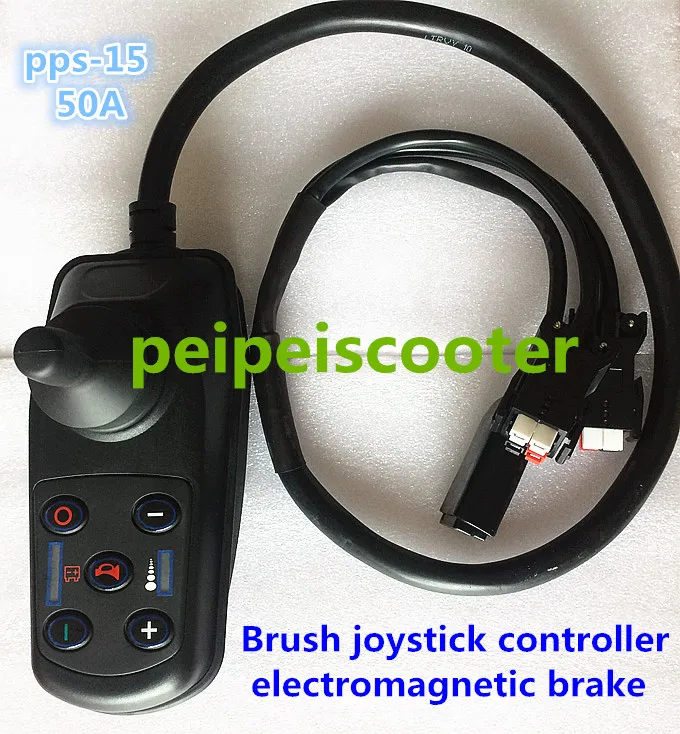

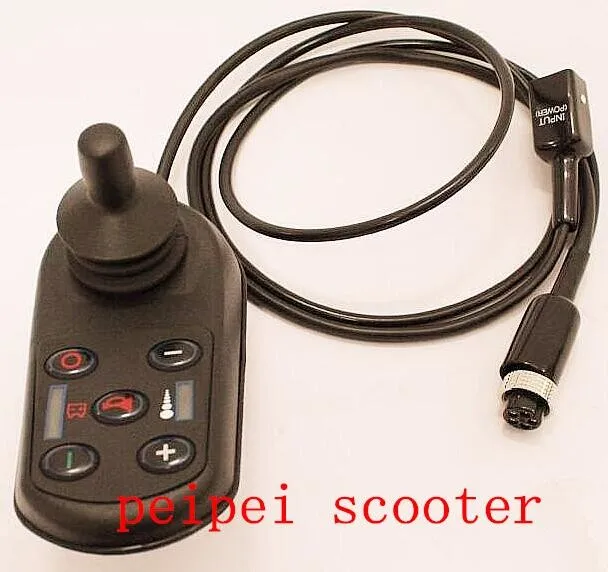

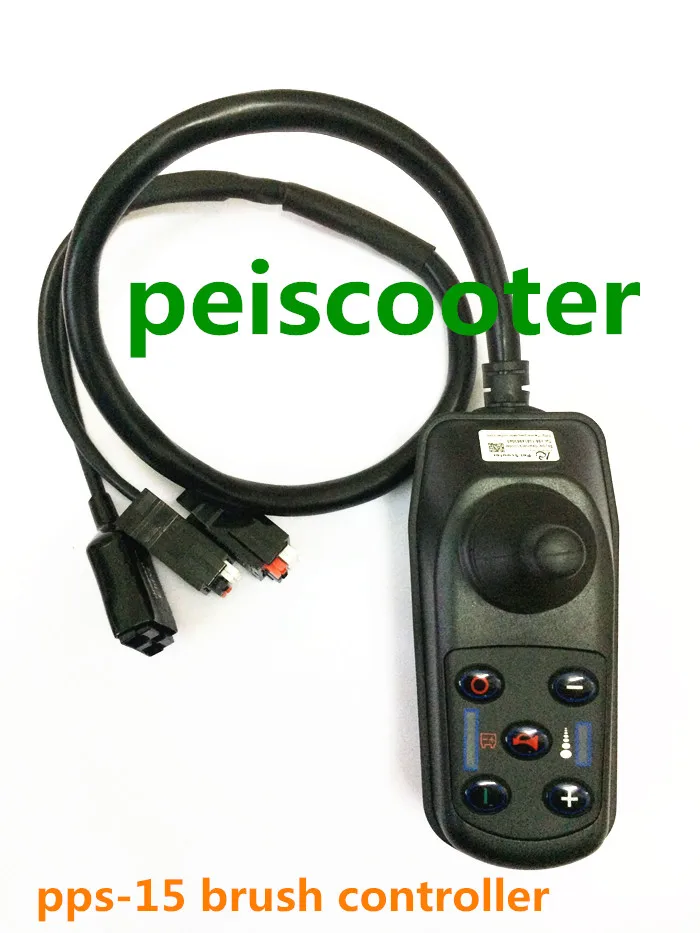

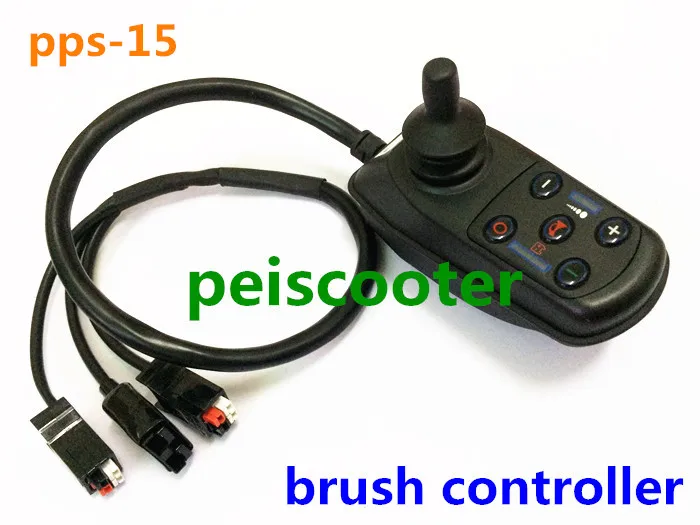

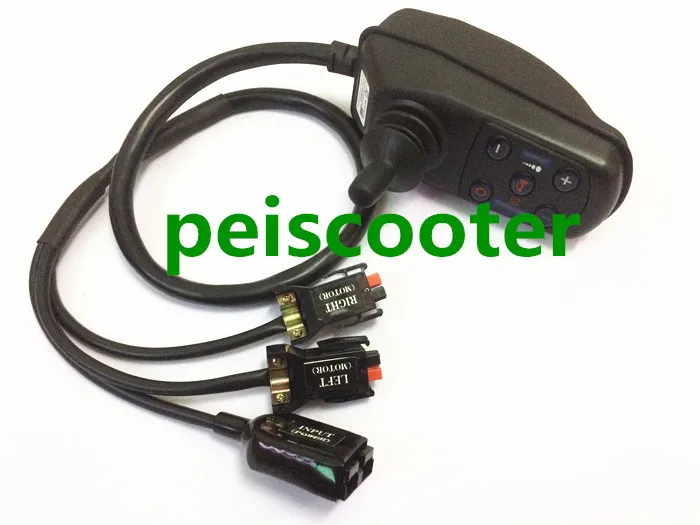

50A brushed wheelchair scooter dc motor joystick controller with electromagentic brake pps-15

{{ product.price_format }}
{{ product.origin_price_format }}
Quantity:
Brand: peiscooter
SKU:{{ product.sku }}
Model: {{ product.model }}

{{ variable.name }}

{{ value.name }}

50A brushed wheelchair robot scooter dc motor joystick controller with electromagentic brake

Model:pps-15

Power voltage:DC24V

Working voltage:DC18V-28V

Max voltage:DC38V

PWM frequency:19.5KHZ

Brake voltage:DC6V-24V

Brake current:max:1A minimun:0.1A (single)

Max charging current:12A

Max working current:50A

Use environment temperature:-25------ +50

Storage temperature:-40------ +65

Humidity level:IPX4

EMC test:

Magnetic susceptibility:in the 30v/m EN12184 and in accordance with ANSI/RESNA requirements

Electro magnetic radiatio:according to the EN55022 B

ESD:IEC801 the second part ESD:IEC801

Contains inverse electro magnetic brake function

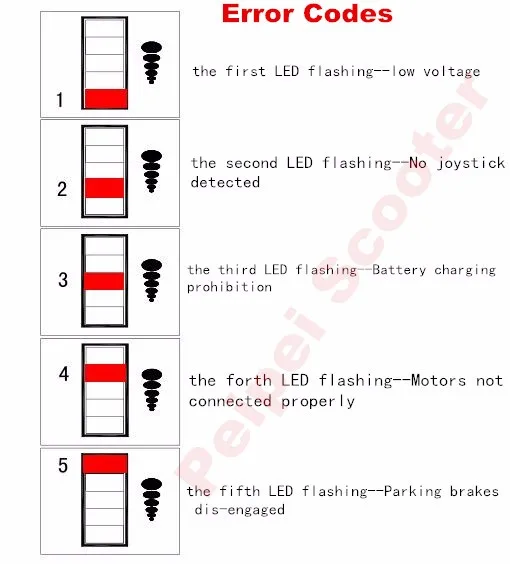

The brake circuit automatic detection function

This is a creative and fashion design electric wheelchairs intelligent controller.Let the user smoothly
and follow one's inclinations through the control panel and joystick to manipulate wheelchair in 360
degrees movementing in any directions.The control system adopted by the programmable computer
chips as the center of the brushless dc motor to drive two only at different speed or direction, in order
to achieve to any direction of movement, let users really feel perfect with the power of finger .The
operation of the intelligent controller is very simple,easy to grasp.
