30A brushless scooter dc motor controller DIY KIT which can be programmed by our software pps-01

Quantity:

Brand: peiscooter

SKU:{{ product.sku }}

Model: {{ product.model }}

30A brushless scooter dc motor controller DIY KIT

Model:pps-01

brushless motor controller

Maximum continuous current:30A

voltage:24v/36v/48v/60v

Dimensions:11.5x7.3x4.2cm

weight:0.45kg

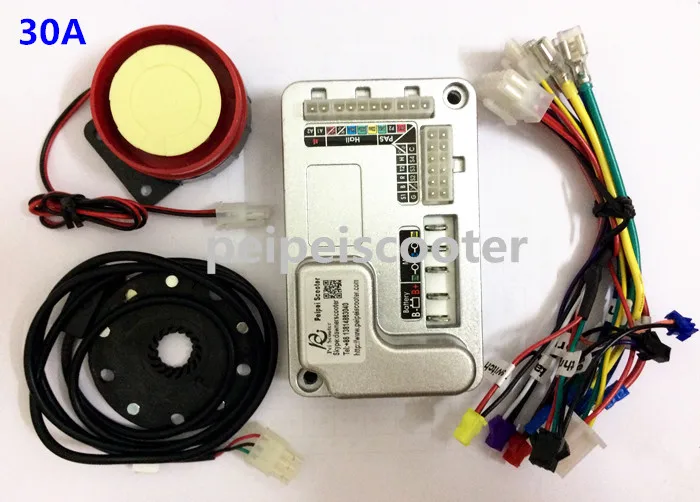

Including controller and cables and horn and PAS

It also can be programmed by software.Buyer need buy programming cables PPC-01 from us

This is brushless motor intelligent cotroller.The parameters can be programmed.The working voltage of the brushless motor cotroller is 17V-60V.Maximum continuous current can be reach to 30A,it would match with any brushless motor that under 1500W.

If want to programe the controller,please buy our programming cable.

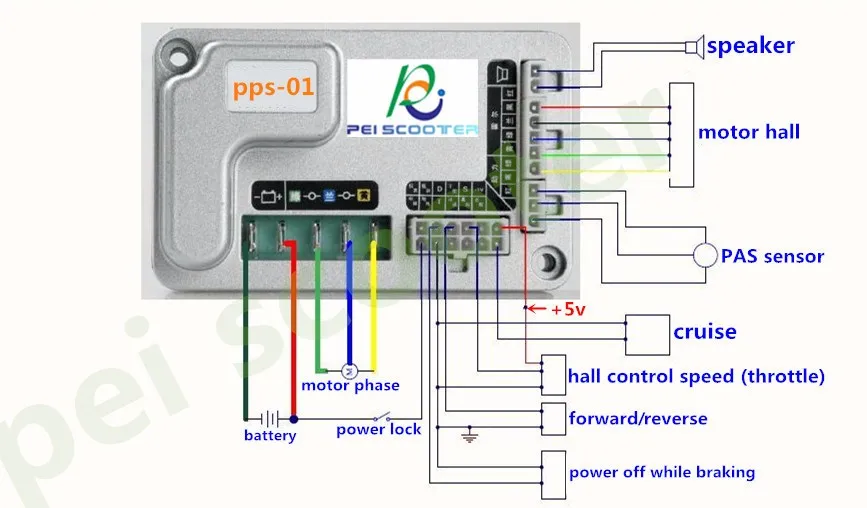

The installation process is as follows.

Our controller including:

mobility scooter controller

electric wheelchair controller

brushless motor scooter controller

brushed DC motor controller

brushless DC motor controller
