50A brushed electric wheelchair robot scooter joystick controller with electromagnetic brake with USB pps-18

{{ product.price_format }}
{{ product.origin_price_format }}
Quantity:
Brand: peiscooter
SKU:{{ product.sku }}
Model: {{ product.model }}

{{ variable.name }}

{{ value.name }}

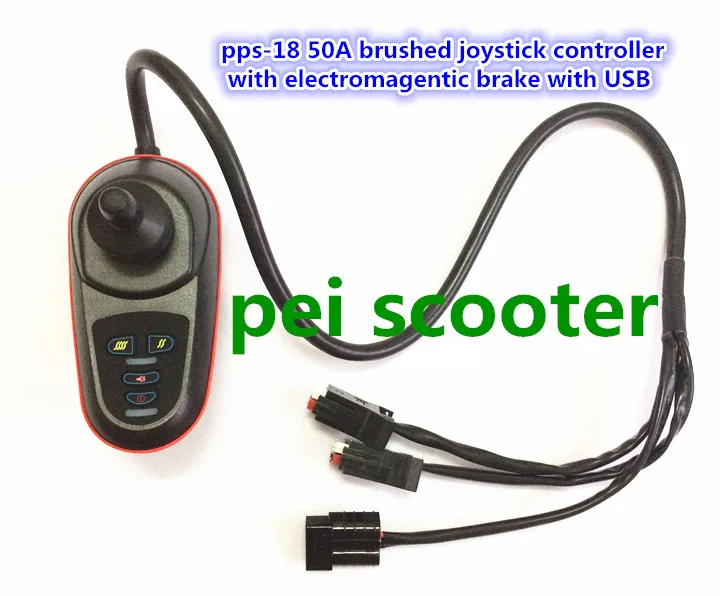

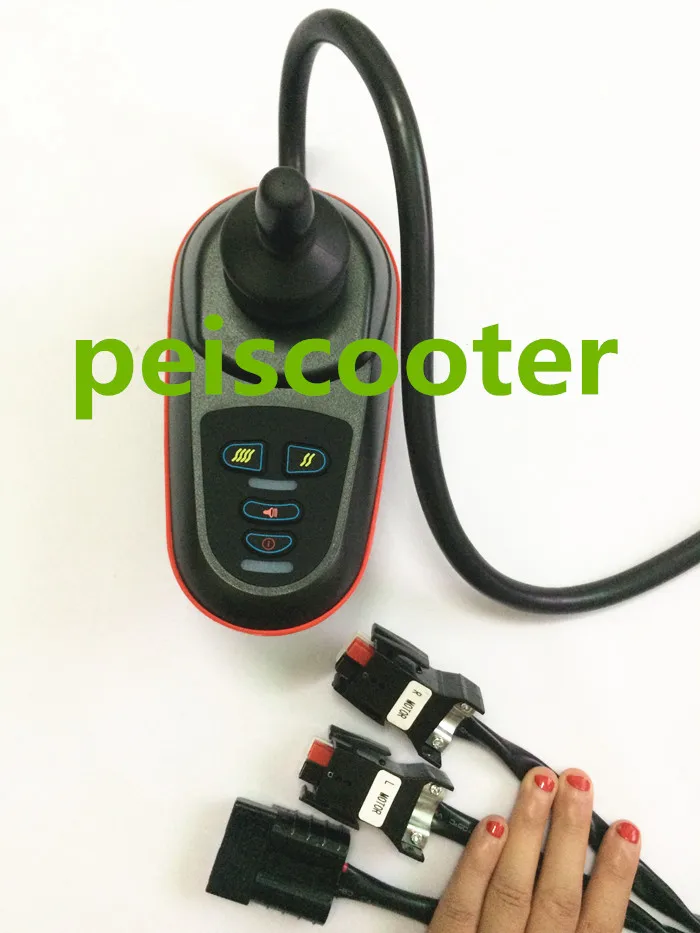

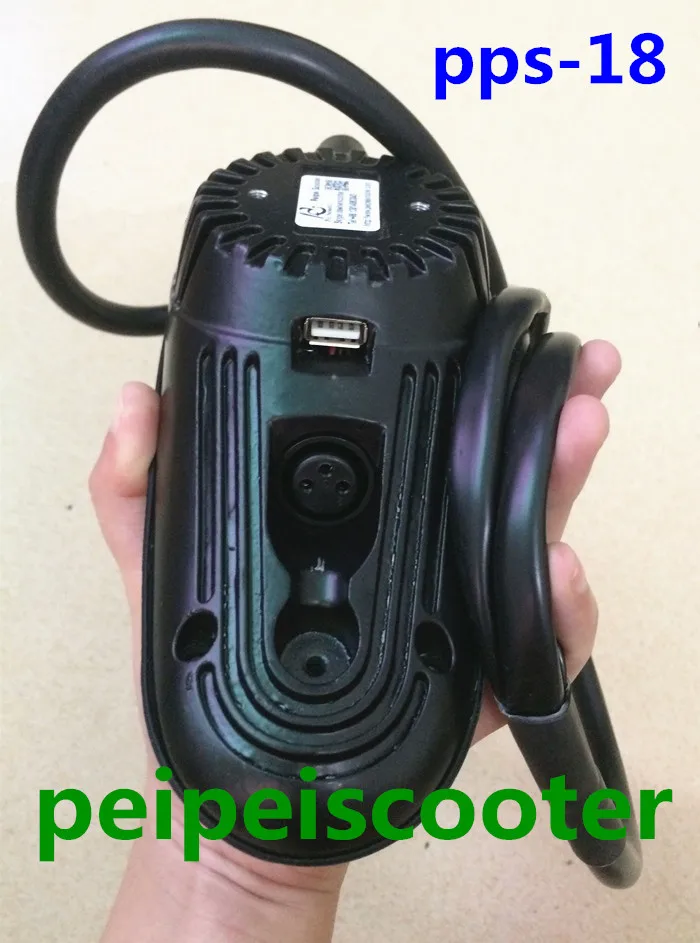

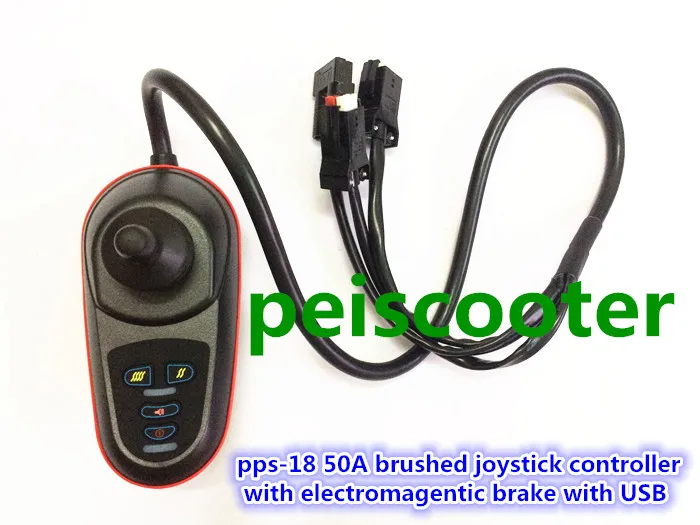

50A brushed electric wheelchair robot scooter joystick controller
with electromagnetic brake with USB
Model:pps-18
Power voltage:DC24V
Working voltage:DC18V-30V
Max voltage:DC36V
PWM frequency:20KHZ
Brake voltage:DC24V
Brake current:max: 5A  minimun:0.1A (single)
Max charging current:6A
Max working current:50A-60A
Use environment temperature:-25------ +50
Storage temperature:-40------ +65
Free shipping,The transport way will be decided by seller.

EMC test:

         Magnetic susceptibility:in the 30v/m EN12184 and in accordance with ANSI/RESNA requirements

         Electro magnetic radiatio:according to the EN55022 B

         ESD:IEC801 the second part ESD:IEC801

Contains inverse electro magnetic brake function,The brake circuit automatic detection function.

This is a creative and fashion design electric wheelchairs intelligent controller.Let the user smoothly
and follow one's inclinations through the control panel and joystick to manipulate wheelchair in 360
degrees movementing in any directions.The control system adopted by the programmable computer
 chips as the center of the brushless dc motor to drive two only at different speed or direction, in order
to achieve to any direction of movement, let users really feel perfect with the power of finger .The
operation of the intelligent controller is very simple,easy to grasp.
