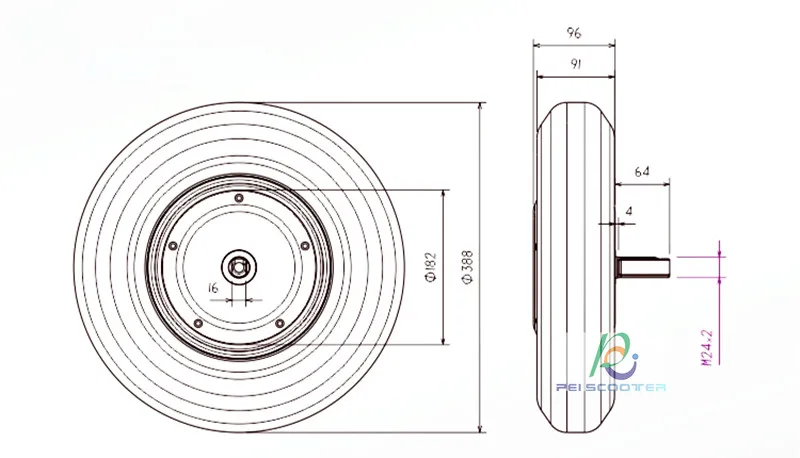

15 Inch Off-Road Tire Single Axle Encoder Torque Hub Motor Wheel
Model:phub-15ch
Voltage:24v-48v
Rated speed:200rpm
Encoder:1024
Max Power:800w
Max torque: 45Nm
Max current: 30A
Weight: 10kgs
Pole number: 20
Tire:15 inch (3.50-8)
Power line:yellow(U),green(V),blue(W)
Hall line:yellow(U),green(V),blue(W),red(+5v),black(GND)
Encoder line:orange(A+),grey(A-),white(B+),brown(B-)
