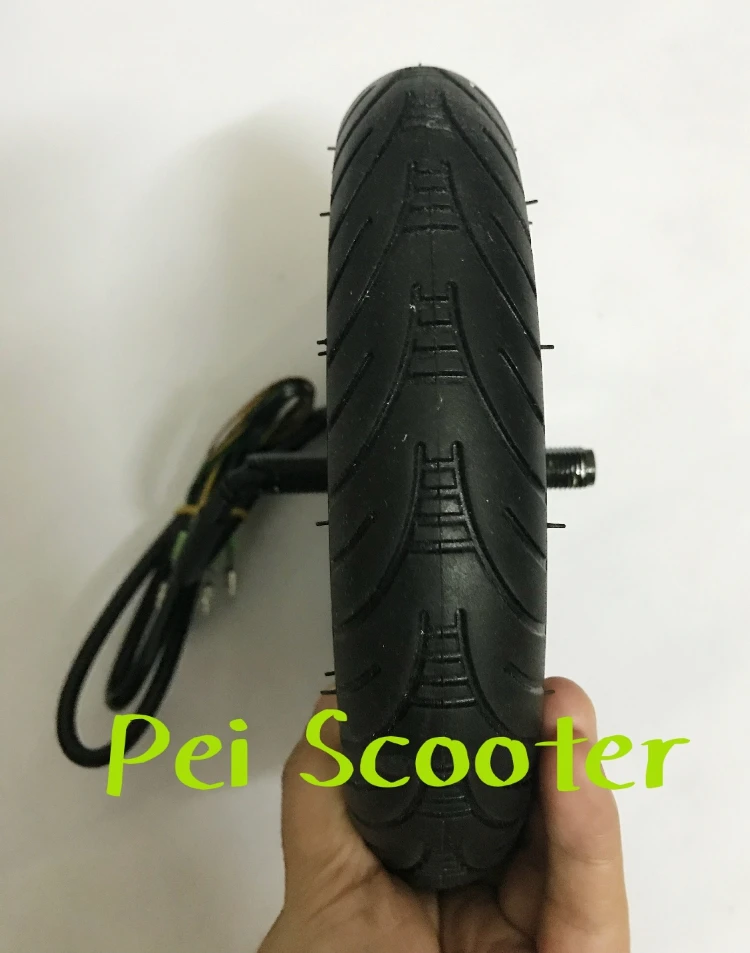

8 inch tyre brushless gearless dc ultra thin hub wheel scooter motor double axles phub-211

8 inch tyre brushless gearless dc ultra thin hub wheel scooter motor

Double axles BLDC

Model:phub-211

Tyre:8 inch ultra thin

Optional voltage:24v/36v/48v

Optional power:250w/350w

Tire:8*1.5

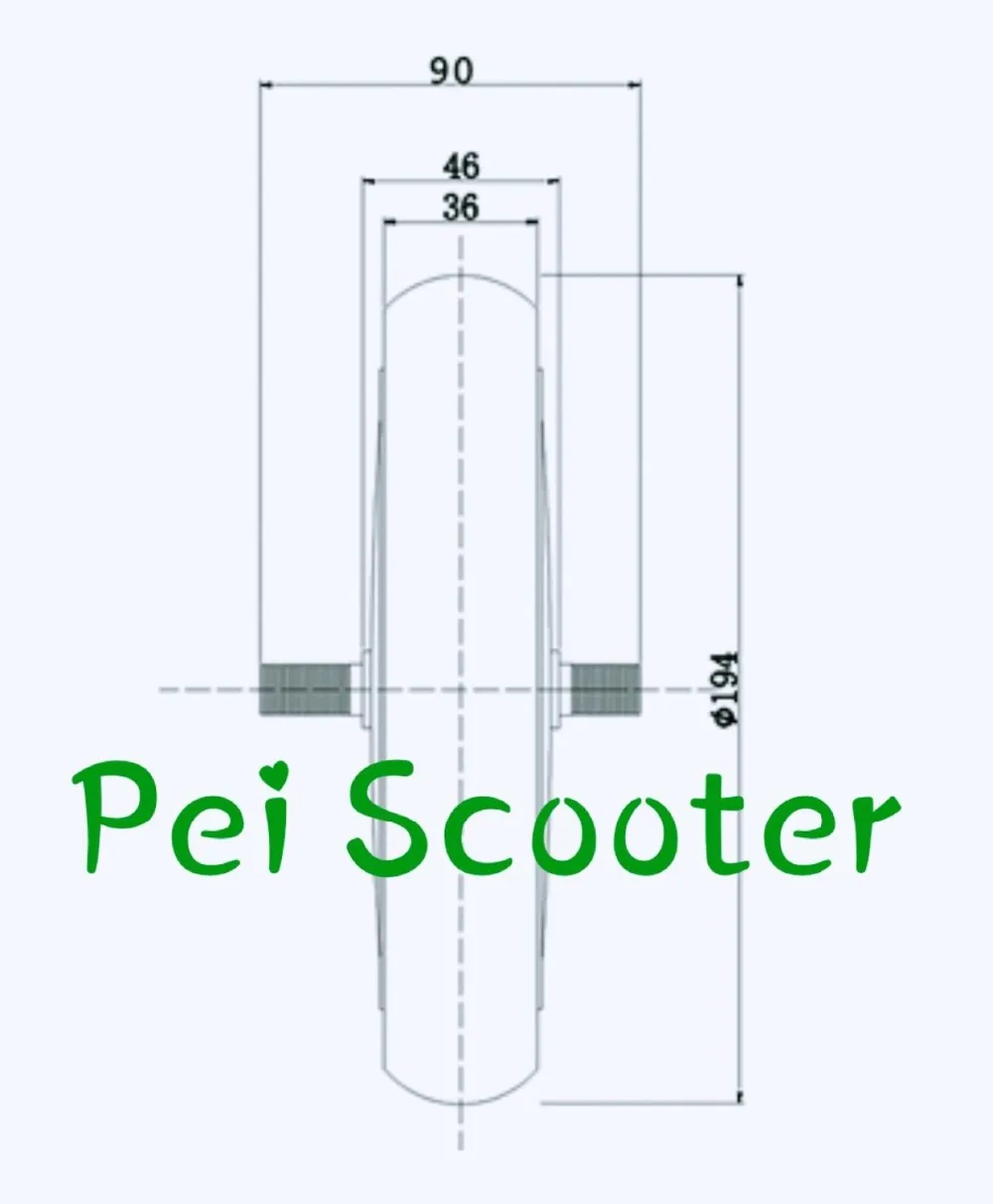

Length of shaft is 83 mm

Diameter of shaft is M12

Weight:2.4kg

Magnetic pole number: 15

Brake method: Predecessor

open size: 46mm

core spec:115#

number of stator slots: 27

hall angle: 120

rated current: 8.5A

rated speed: 700rpm

max torque: 12Nm

no-load current: <=1.8A

efficiency point: >=78%
