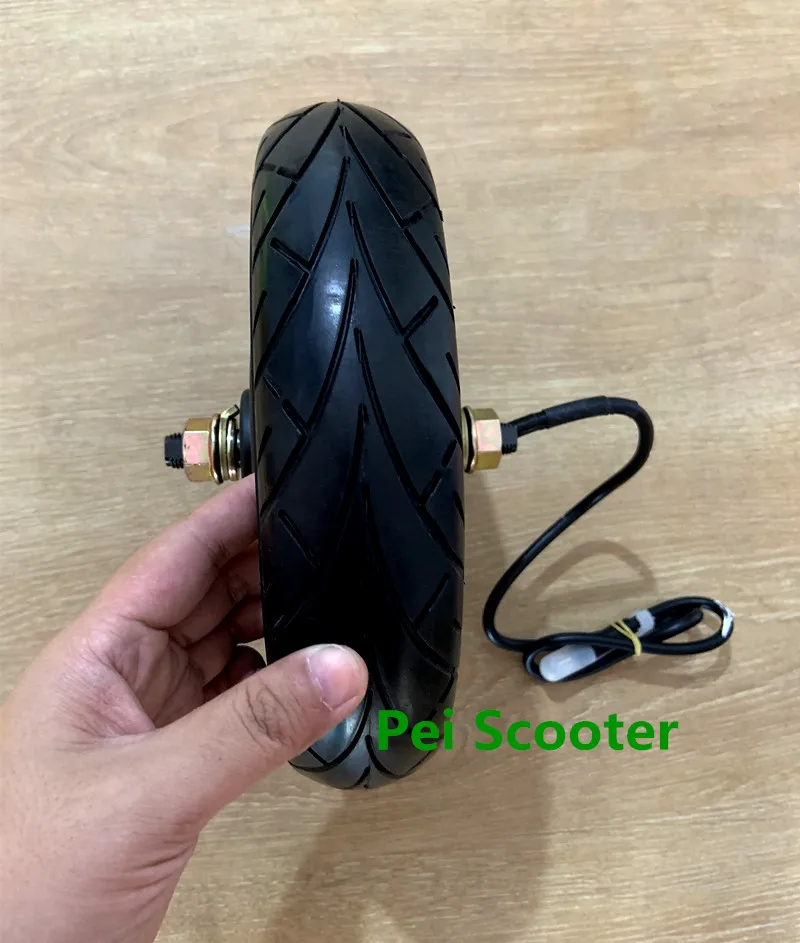

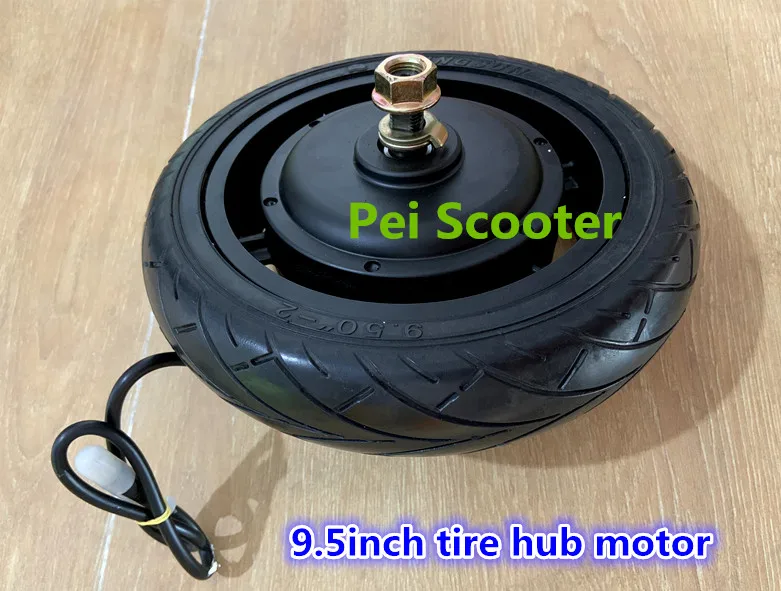

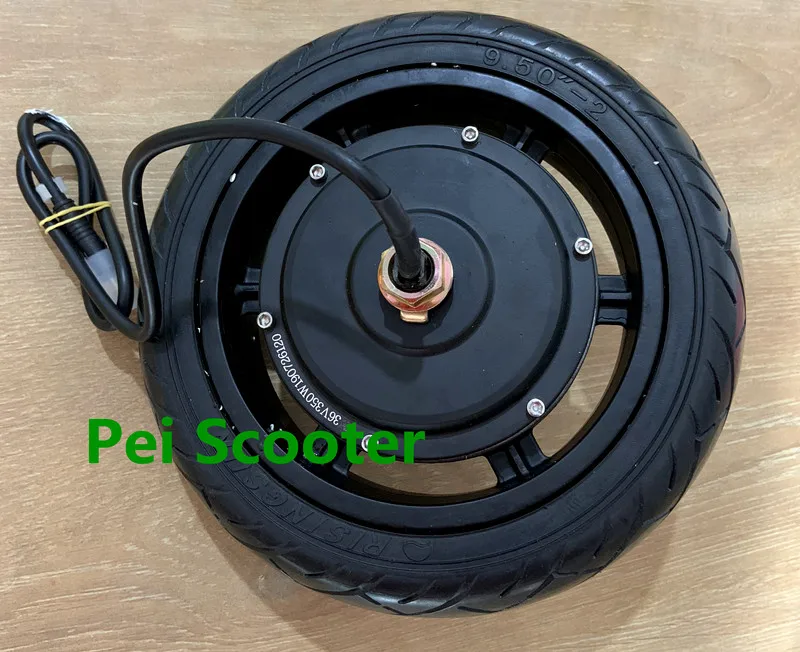

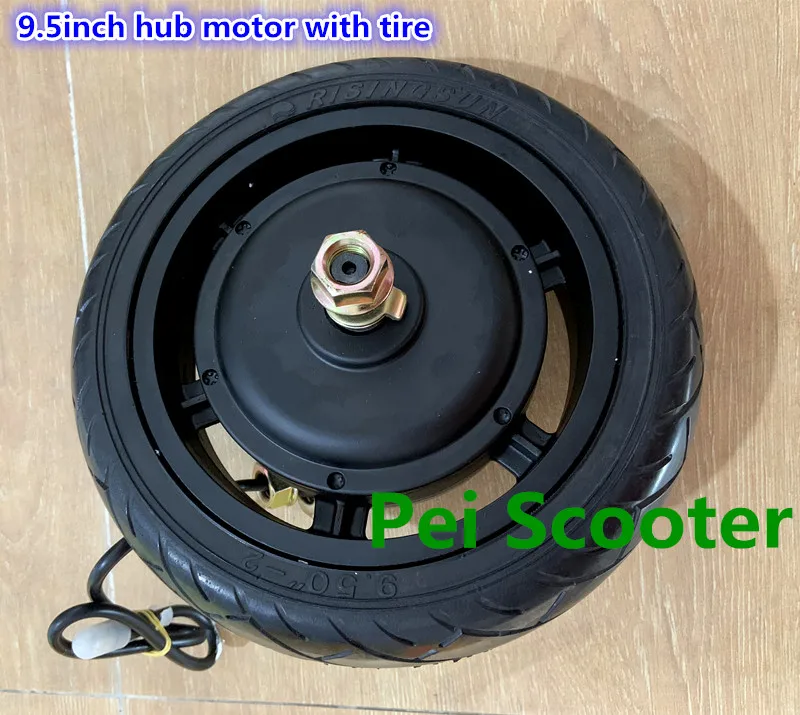

9.5inch 9.5 inch hub motor,brushless gearless dc hub wheel motor
Double axles BLDC
Model:phub-236
Optional voltage:24v/36v/48v
power:350w-500w
Magnetic pole number: 15
core spec:105#
number of stator slots: 27
hall angle: 120
rated current: 9A
rated speed: 650rpm
Max torque:22Nm
weight: 4kgs
Tire:9.5-2
no-load current: <=1.8A
efficiency point: >=81%
If you need controller and other parts,Please contact us!
If you have any questions about freight, please contact us.
