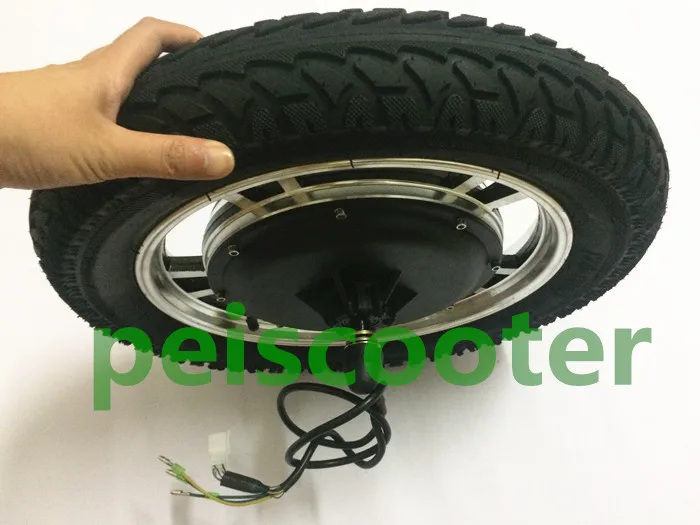

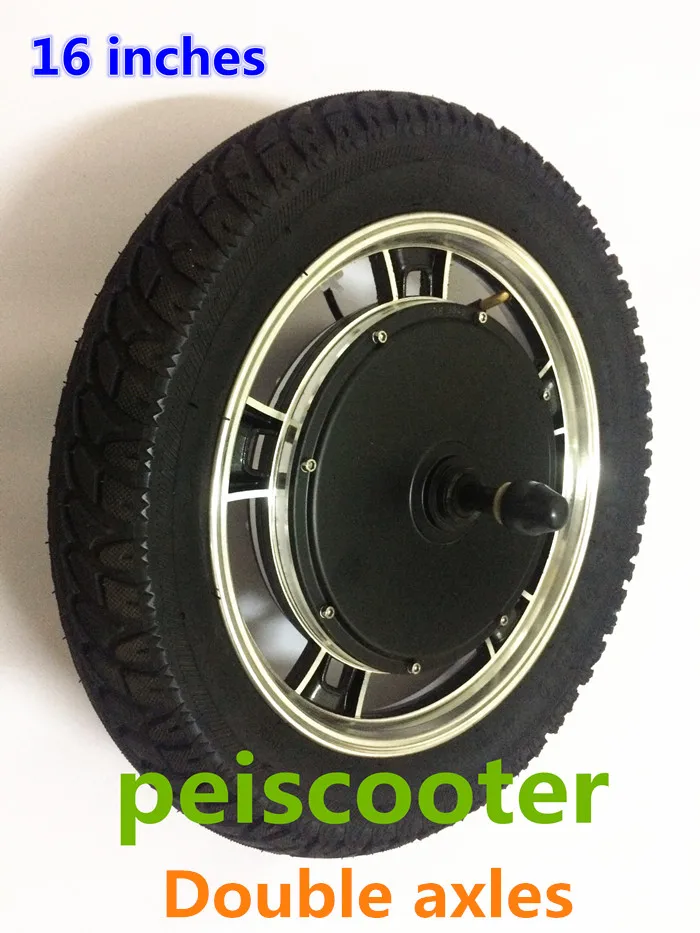

16 inch tyre brushless gearless dc wheel hub motor with disc and tyre scooter hub motor phub-126

16 inch tyre BLDC brushless gearless dc wheel hub motor with disc

scooter hub motor

Model:phub-126

optional voltage:24v/36v/48v/60v

optional rated power:250w-1000w

rated speed:350rpm-800rpm

Rim is 12 inches

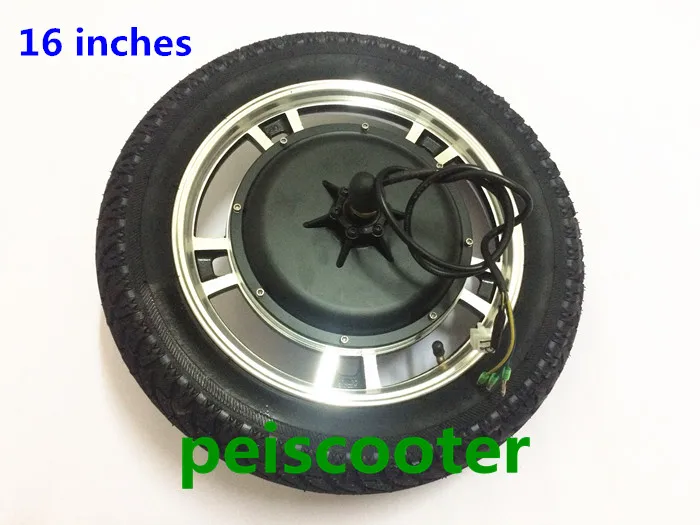

Diameter with tyre is 16 inch

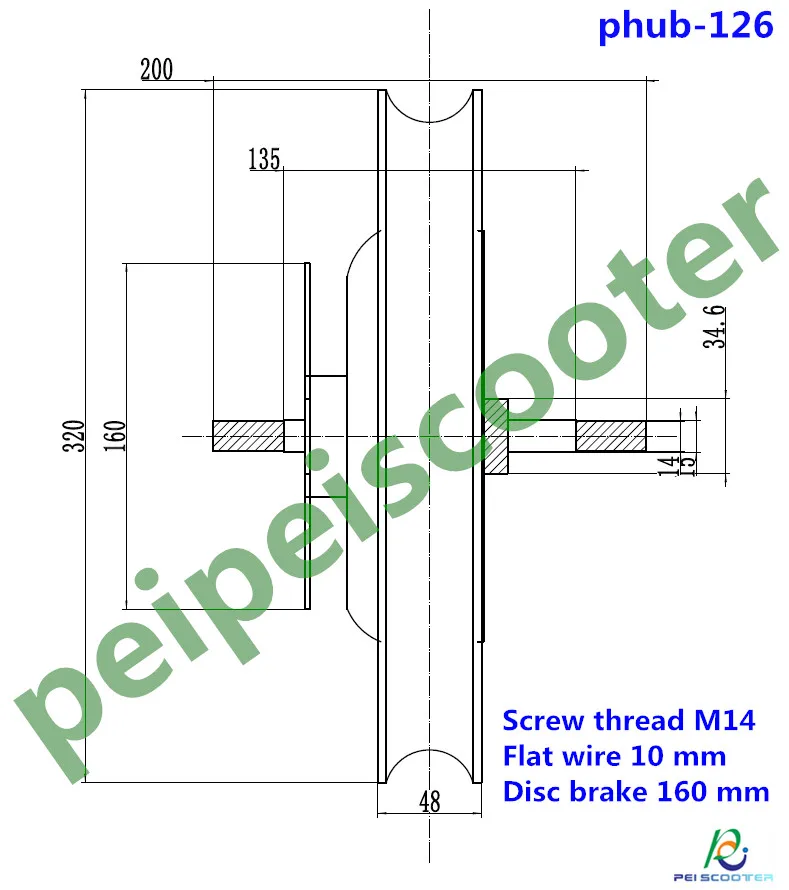

Diameter of hub wheel is 320 mm

Screw thread is M14

Flat wire is 10 mm

Diameter of Disc brake is 160 mm

Can fit the width of tyre contain 3.0,2.125,and 2.5

brake:with disc brake

If need,can support forward and reverse

Weight:9kgs
