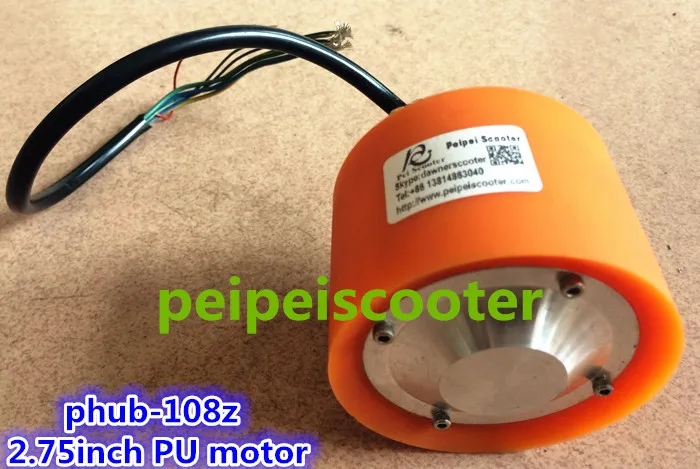

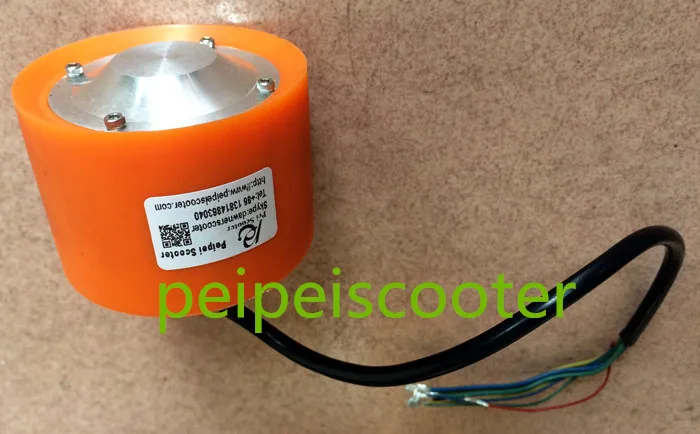

2.75 inch tyre brushless gearless PU single shaft one-wheel integrated dc wheel hub motor for scooter motor phub-108z

2.75 inch lightest weight brushless gearless single shaft one-wheel integrated dc wheel hub motor for scooter motor

Model:phub-108z

Power:100-200w

Brushless motor type:no gear hub motor

Motor add PU tire net weight:0.7kg

The tire diameter:70mm

Tire width:52mm

The motor shaft diameter:M17

The motor shaft length:can be customized

The motor cable length: 20 to 50 cm

Hall sensor quantity:3

No-load speed:24v900rpm (0.35A)/36v1350rpm (0.38A)/48v1850rpm (0.42A)

Rated speed:700-1800rpm

Rated torque:3-5nm

Flat fork width requirements:can be customized

Brakes:can be customized

The corresponding controller:24v36v48v small power controller

(If you need,we also can provide,please consult us,thanks)
