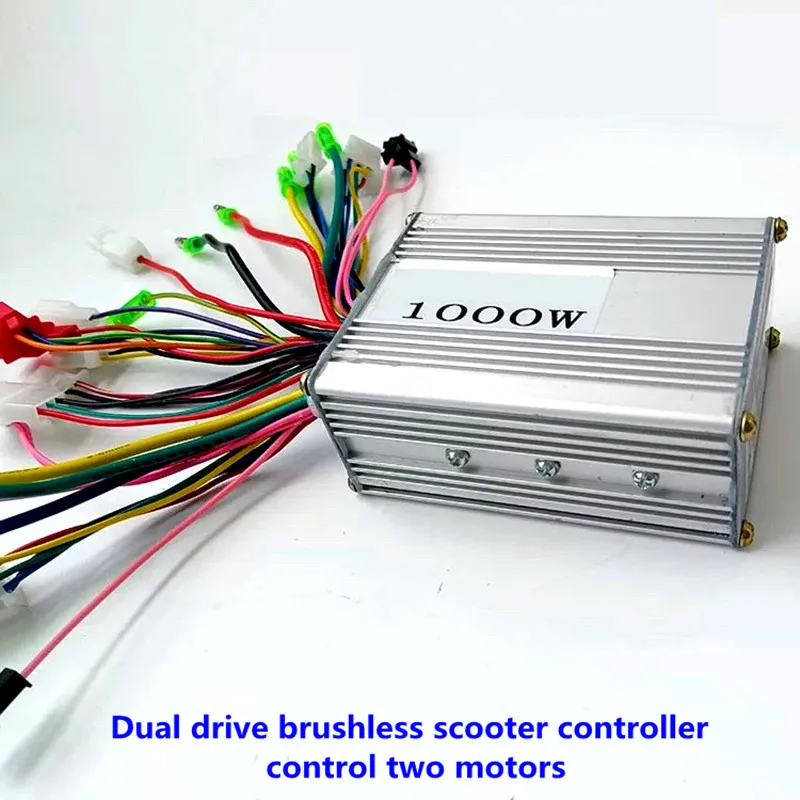

Dual drive brushless scooter controller,control two motors
Model:pps-d1
This controller can control two brushless DC motors,and it is a dual drive controller.
Applicable voltage range: 36V to 60V
The controller has basic main functions such as reversing,braking,two speed gears,and power locking.
It is designed for two motor drive systems,with one motor on the left and one motor on the right.
1. The current limit is 50A,which means that each motor has a current limit of 25A.The suitable range for brushless wheel hub motors is around 300w-500w,with a volume of 110*75*42mm;
2. The current limit is 80A, which means each motor has a current limit of 40A.Brushless wheel hub motors are suitable for around 500w-800w,with a volume of 150*100*55mm.
