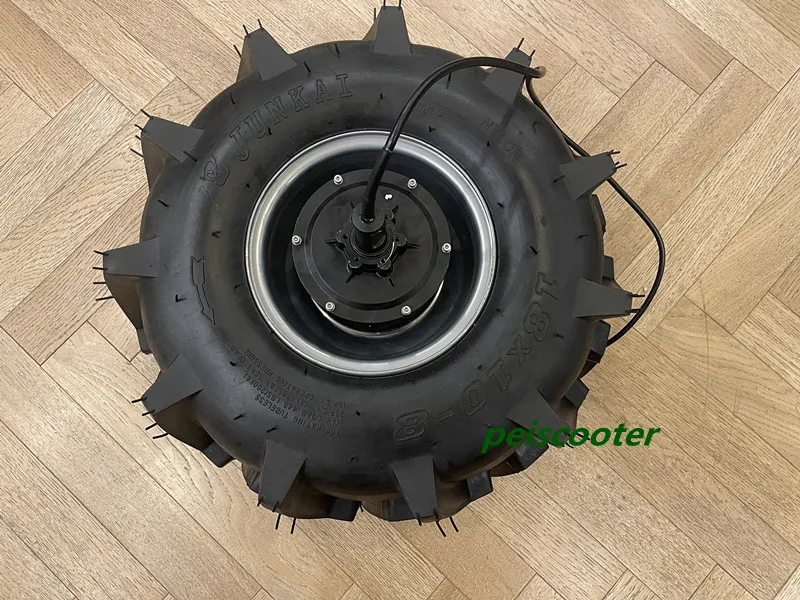

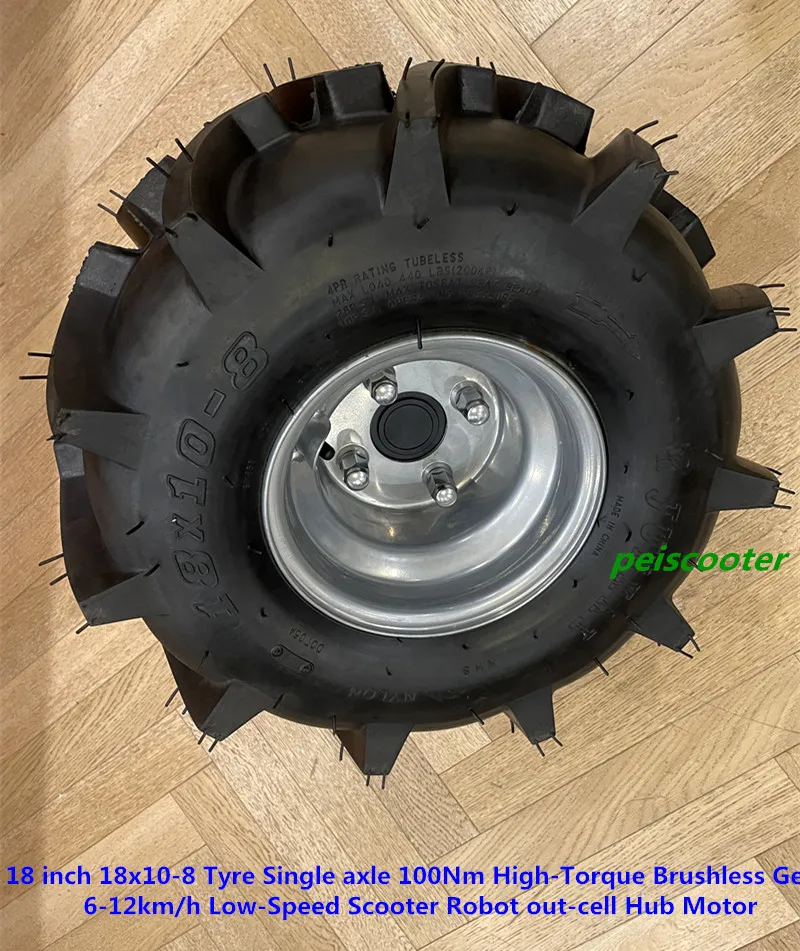

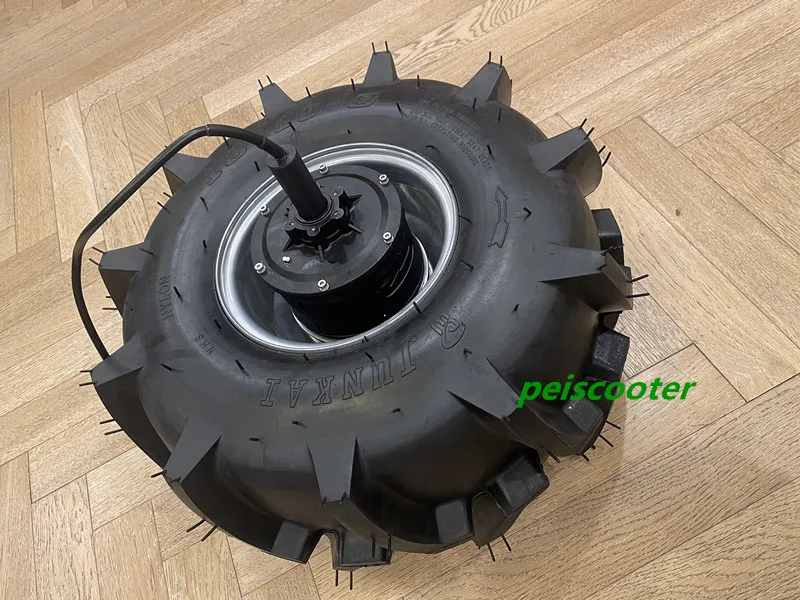

18 inch tyre 18x10-8 single shaft 100Nm torque brushless gear scooter hub motor
Suitable for electric handcart motors,electric sweeper motors,and garden electric sweeper motors
Low-Speed Power-Torque Hub Motor
With Disc brake,has hall sensors
Model:phub-hh
Hub motor is Suitable for garden electric handcarts or electric agricultural vehicles

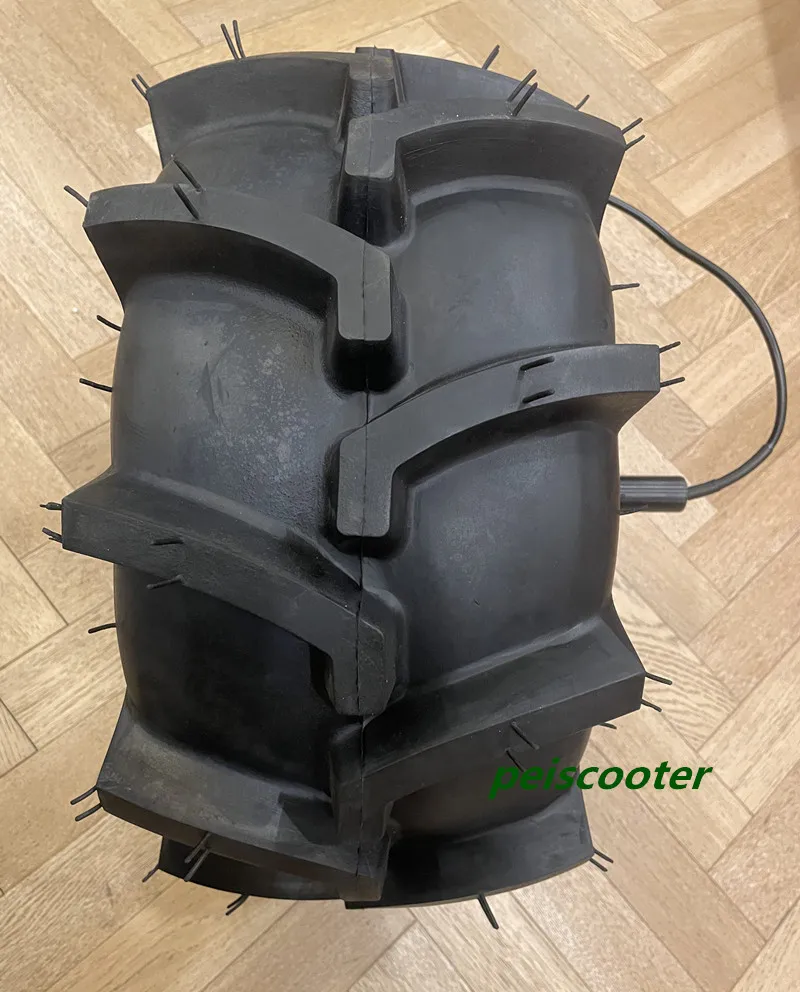

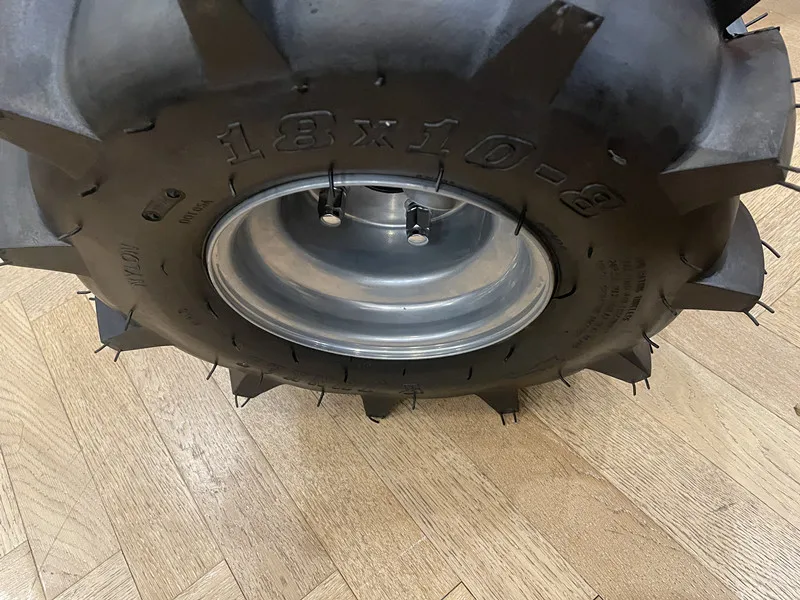

Tyre:18x10-8
Voltage:24v-60v
speed:200rpm
Gear ratio: 5:1
Current: 30A
Number of magnetic poles: 10 pairs
Torque:100Nm
Max Power:1000w
real weight:16kgs
Loading weight:500kgs
Optional upgrades: 1. Add incremental magnetic encoder 2. Add temperature sensor (thermistor) 3. Replace nylon gear to steel gear 4. Upgrade to maximum torque of 150Nm 5. Replace shaft diameter to 25mm. Please contact customer service for specific requirements
