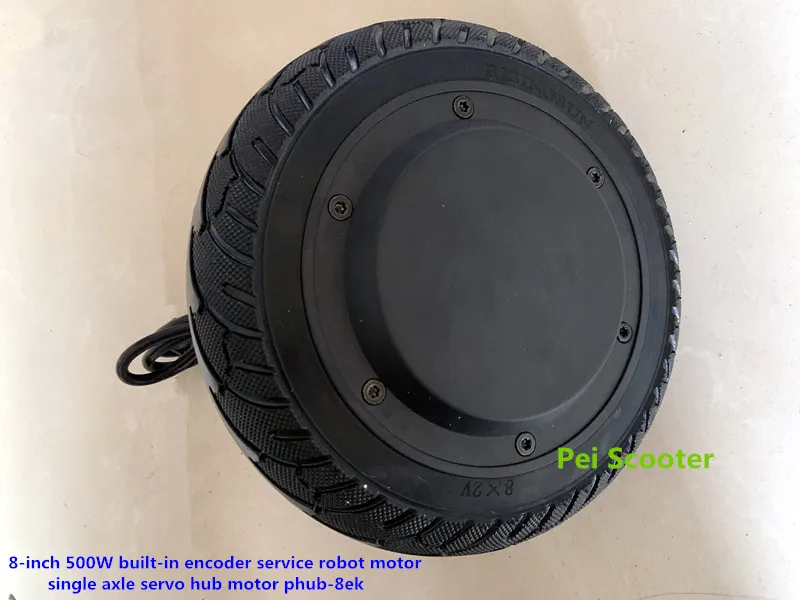

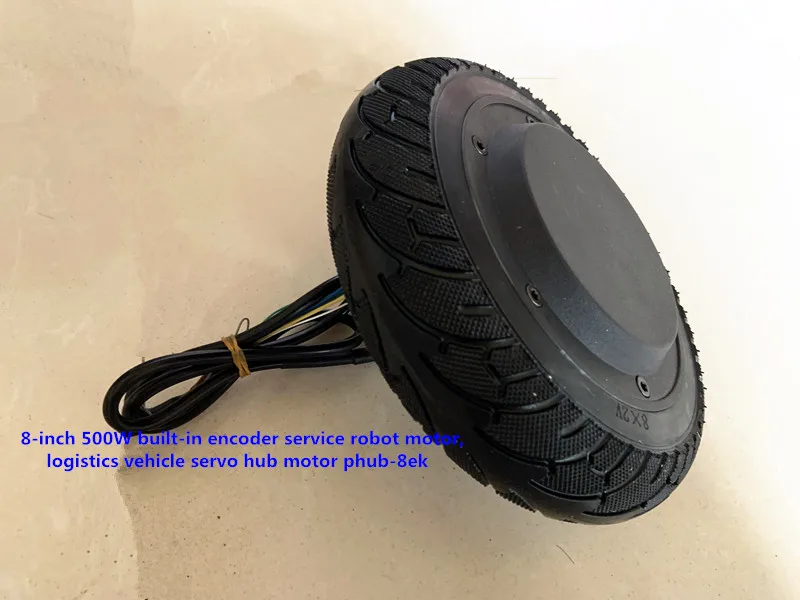

8 inch tyre single axle 500W built-in encoder service robot motor,logistics vehicle servo hub motor phub-8ek

8 inch tyre single axle 500W built-in encoder service robot motor

AGV logistics vehicle servo hub motor

Model:phub-8ek

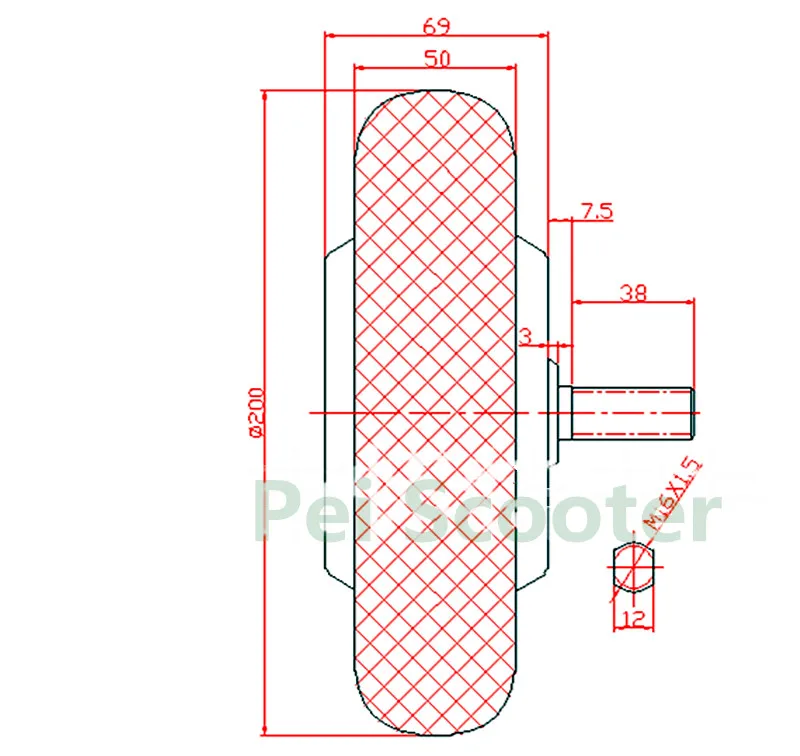

Tire diameter: 200 mm

Rated voltage: 24-48v

Rated power: 200w-500w

Rated current: 5-17A

Maximum current: 34A

Rated torque: 12N.m

Rated speed: 280rpm

Maximum speed: 450rpm

Number of encoder lines: 1024

Polar logarithm: 15

Brake mode: electric brake

Weight: 4.5kg

Three phase wire: yellow (U), green (V), blue (W)

Hall line: Blue (U), yellow (V), green (W)

Encoder: White (a +), purple (B +)

Thermistor: gray, brown
