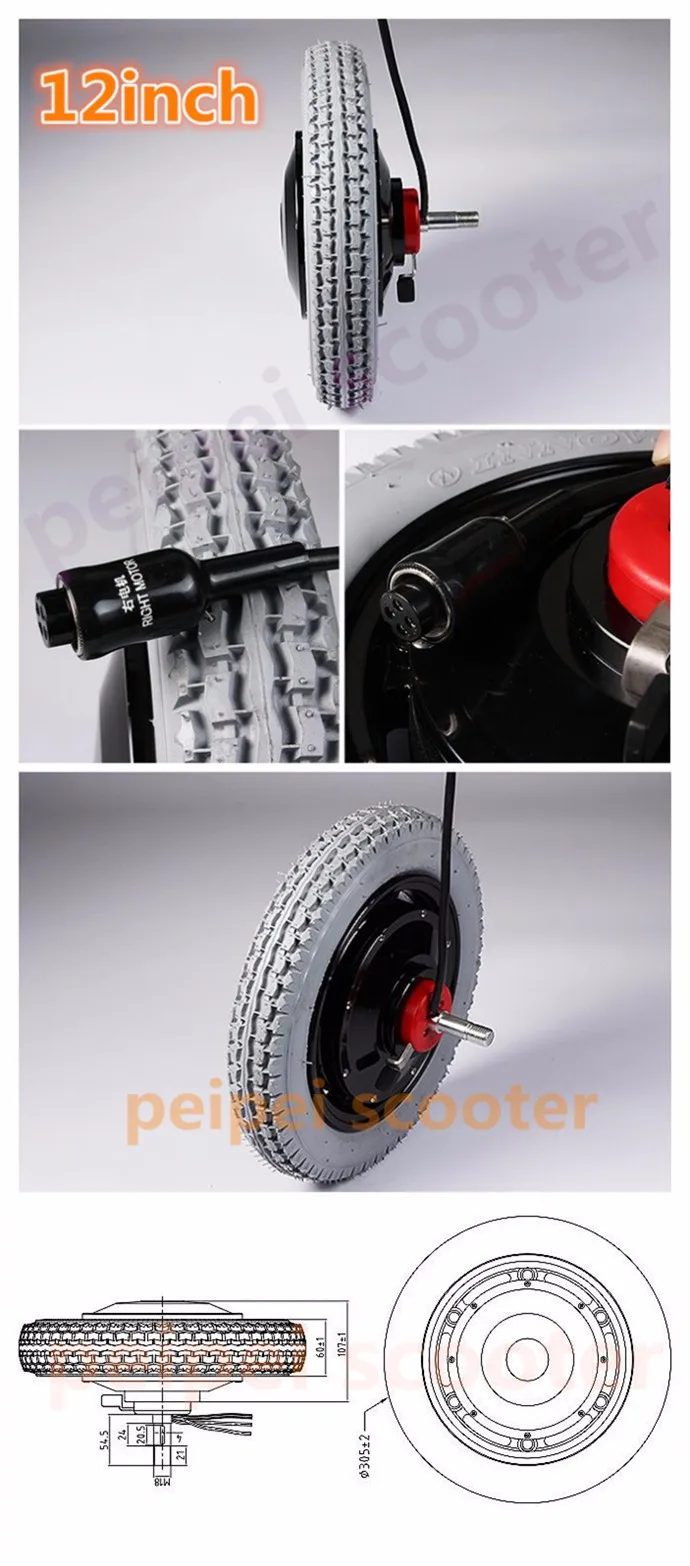

12inch 12 inch brushed gear toothed power electric wheechair robot hub motor

with electromagentic brake

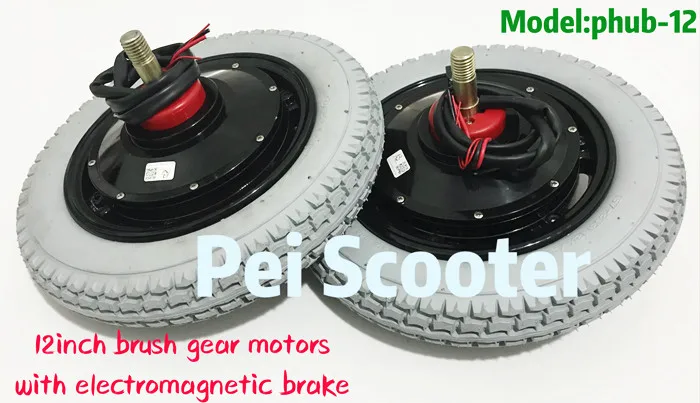

Model:phub-12
voltage/power Rate:DC24v 180w
(DC36v 300w need customize)

about hub motor:
color of hub:black
on-load speed:115r/min
no-load noise:<60dB
no-load current<1.5A
rated voltage:200w
rated current:<=13A
rated torque:20.0n.m
rated speed:95r/min

about electromagnetic brake:
voltage:24v
current:1.2A@24v
brake moment:>=30n.
hand clutch lever:self-motion
price for pair.

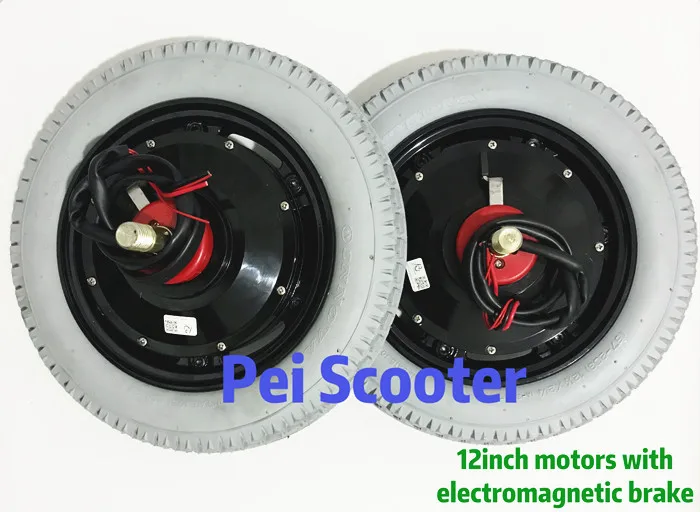

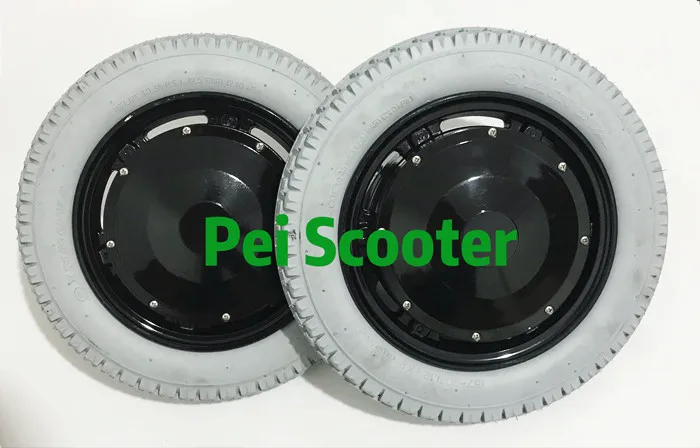

This is 12 inch brushed hub motor with electromagentic brake can be used for electric wheelchair.

This brushed wheelchair motor at least can save 30% power more than others.

It can used for many designs,Such as below.

Mobility scooter motor,

Electric cart motor,

Cleaning machine motor,

Service robot motor,

Electric mower motor,

Electric tractor motor,

Electric trolley motor,

Micro electric vehicle motor,

Electric golf vehicle motor,

Electric wheelchair motor,

Automatic guide vehicle AGV motor
